FUSE对接FusionInsight HDFS¶

适用场景¶

FUSE 2.8.3 ↔ FusionInsight HD V100R002C60U20（HDFS）

说明¶

通过使用FUSE组件，可以使用将远端的HDFS文件系统mount到本端的Linux系统中使用。FusionInsight HD为非安全模式。

配置对接¶

安装jdk1.8
```
tar -xvf jdk-8u112-linux-x64.tar.gz
```

配置环境变量/etc/profile，加入如下内容，source环境变量

export JAVA_HOME=/opt/jdk1.8.0_112
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$JAVA_HOME/bin:$PATH

source /etc/profile

安装rpm包

yum install fuse fuse-devel fuse-libs

安装FusionInsight客户端，具体请参见产品文档的 安装客户端 章节，例如客户端安装目录为/opt/hadoopclient/
下载Hadoop-2.7.2源码hadoop-2.7.2-src.tar.gz，编译fuse_dfs，将编译好的fuse_dfs拷贝到/opt目录下

将源码下的fuse_dfs_wrapper.sh脚本拷贝至/opt目录下，并根据实际情况作如下修改(修改HADOOP_PREFIX和JAVA_HOME的配置)：

export HADOOP_PREFIX=/opt/hadoopclient/HDFS/hadoop
if [ "$OS_ARCH" = "" ]; then
export OS_ARCH=amd64
fi

if [ "$JAVA_HOME" = "" ]; then
export  JAVA_HOME=/opt/jdk1.8.0_112
fi

if [ "$LD_LIBRARY_PATH" = "" ]; then
export LD_LIBRARY_PATH=$JAVA_HOME/jre/lib/$OS_ARCH/server:$HADOOP_PREFIX/lib/native:/usr/local/lib
fi

# If dev build set paths accordingly
if [ -d $HADOOP_PREFIX/share ]; then
  export HADOOP_PREFIX=$HADOOP_PREFIX
  for f in ${HADOOP_PREFIX}/share/hadoop/hdfs/*.jar ; do
    export CLASSPATH=$CLASSPATH:$f
  done
  for f in $HADOOP_PREFIX/share/hadoop/hdfs/lib/*.jar; do
    export CLASSPATH=$CLASSPATH:$f
  done
  for f in ${HADOOP_PREFIX}/share/hadoop/common/lib/*.jar; do
  export CLASSPATH=$CLASSPATH:$f
  done

  for f in ${HADOOP_PREFIX}/share/hadoop/common/*.jar; do
  export CLASSPATH=$CLASSPATH:$f
  done

  export PATH=/opt:$PATH
  export LD_LIBRARY_PATH=$JAVA_HOME/jre/lib/$OS_ARCH/server:$HADOOP_PREFIX/lib/native:/usr/local/lib:$LD_LIBRARY_PATH
fi

fuse_dfs $@

更改文件权限

chmod 755 fuse_dfs
chmod 755 fuse_dfs_wrapper.sh

Source环境变量

source /opt/hadoopclient/bigdata_env

mkdir –p /mnt/hdfs

执行挂载脚本，其中162-1-95-196是HDFS的NameNode(hacluster,主)的主机名

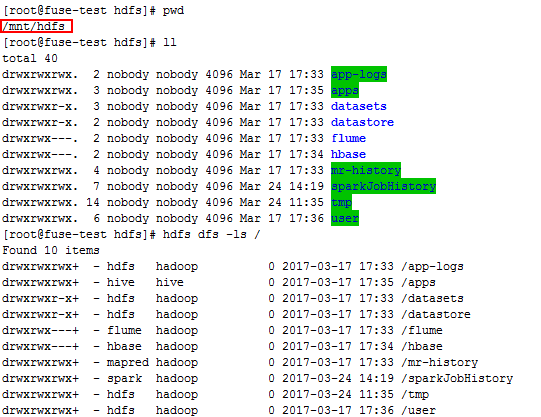

./fuse_dfs_wrapper.sh dfs://162-1-95-196:25000 /mnt/hdfs/

如果需要卸载挂载点，执行umount /mnt/hdfs即可

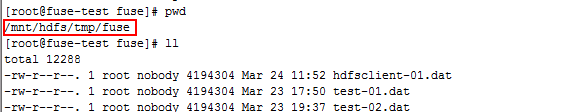

验证对接¶

hdfsclient写

dd if=/dev/zero bs=4096 count=1024 | hadoop fs -put - /tmp/fuse/hdfsclient-01.dat

hdfsclient读

hadoop fs -get /tmp/fuse/hdfsclient-01.dat - > /dev/null

fuse写

dd if=/dev/zero bs=4096 count=1024  of=/mnt/hdfs/tmp/fuse/fuse-01.dat

fuse读

dd if=/mnt/hdfs/tmp/fuse/fuse-01.dat  bs=4096  of=/dev/null
